| RM 1902年、EASEY BLDG。、253-261 HENNESSYの道、WANCHAI、香港 | jason@hydraulicpumpvalve.com |
 |
| 起源の場所: | ドイツ |
| ブランド名: | Rexroth |
| モデル番号: | R900437793 4WH10C46 4WH10C4X |
| 最小注文数量: | 1 |
|---|---|
| 価格: | On request |
| パッケージの詳細: | 標準的な紙箱 |
| 受渡し時間: | 7-10日 |
| 支払条件: | T/T、ウェスタンユニオン |
| 供給の能力: | 1か月あたり100％ |

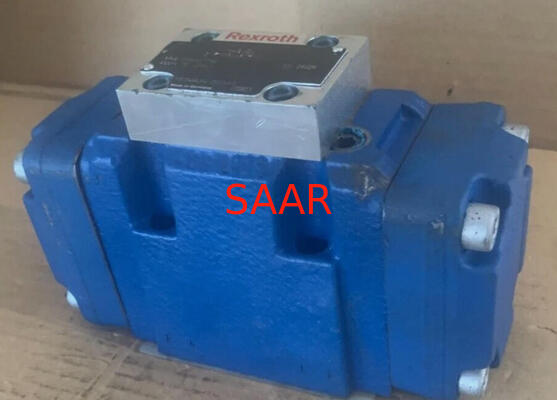

| MNR: | R900437793 | 型番: | 4WH10C46 4WH10C4X |
|---|---|---|---|
| ハイライト: | Rexroth hydraulic directional spool valves,pilot operated hydraulic valves,4WH series hydraulic spool valves |
||
| 01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 | 09 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | ||
| / |
|
/ | * |
| 01 | Up to 280 bar | no code |
| Up to 350 bar | H- | |
| Main ports | ||
| 02 | 3-way version | 3 |
| 4-way version | 4 | |
| Type of actuation | ||
| 03 | Hydraulic | WH |
| Electro-hydraulic | WEH | |
| Size | ||
| 04 | NG10 | 10 |
| NG16 | 16 | |
| NG25 (version "W.H 22") | 22 | |
| NG25 (version "W.H 25") | 25 | |
| Size 32 | 32 | |
| Spool return in the main valve | ||
| 05 | By means of springs | no code |
|
Hydraulic 1) |
H | |
| 06 | Symbols; for the possible version, see "Symbols/Circuit diagrams" | |
| Component series | ||
| 07 | Component series 40 … 49 (40 … 49: unchanged installation and connection dimension) – NG10 | 4X |
| Component series 60 … 69 (60 … 69: unchanged installation and connection dimension) – NG25 ("W.H 25") and NG32 | 6X | |
| Component series 70 … 79 (70 … 79: unchanged installation and connection dimension) – NG16 (from series 72) andNG25 ("W.H 22") | 7X | |
| Control spool return in the pilot control valve with 2 spool positions and 2 solenoids (only possible with symbols A, B, C, D, K, Z and hydraulic control spool return in the main valve) | ||
| 08 | With spring return | no code |
| Without spring return | O | |
|
Without spring return with detent 2) |
OF | |
|
Pilot control valve 2) |
||
| 09 | High-power valve (data sheet 23178) | 6E |
|
Electrical voltages 2) |
||
| 10 | Direct voltage 24 V | G24 |
| Alternating voltage 230 V, 50/60 Hz | W230 | |
| Manual override | ||
| 11 | Without manual override | no code |
| With manual override | N | |
| With concealed manual override | N9 | |
| Corrosion resistance (outside) | ||
| 12 | None (valve housing primed) | no code |
| Improved corrosion protection (240 h salt spray test according to EN ISO 9227) | J3 | |
|
Pilot oil flow 3) |
||
| 13 |
External pilot oil supply, external pilot oil return 4) |
no code |
|
Internal pilot oil supply, external pilot oil return 4; 5) |
E | |
|
Pilot oil supply internal, pilot oil return internal 5) |
ET | |
|
External pilot oil supply, internal pilot oil return 4) |
T | |
| Switching time adjustment | ||
| 14 | Without switching time adjustment | no code |
| Switching time adjustment as supply control | S | |
| Switching time adjustment as discharge control | S2 | |
|
Electrical connection 2) |
||
| 15 | Individual connection | |
| Without mating connector, connector according to DIN EN 175301-803 | K4 6) | |
| Spool position monitoring | ||
| 16 | Without position switch | no code |
| Monitored spool position "a" | QMAG24 | |
| Monitored spool position "b" | QMBG24 | |
| Monitored spool position "a" and "b" | QMABG24 | |
| Monitored rest position | QM0G24 | |
| Stroke setting | ||
| 17 | Stroke setting on valve side A and B | 10 |
| Stroke setting on valve side A | 11 | |
| Stroke setting on valve side B | 12 | |
|
Throttle insert 2) |
||
| 18 | Without throttle insert | no code |
| Throttle Ø 0.8 mm | B08 | |
| Throttle Ø 1.0 mm | B10 | |
| Throttle Ø 1.2 mm | B12 | |
| Throttle Ø 1.5 mm | B15 | |
| Throttle Ø 2.0 mm | B20 | |
| Throttle Ø 2.5 mm | B25 | |
|
preload valve (not for NG10) 2) |
||
| 19 | Without pre-decompression | no code |
| With preload valve | P4,5 | |
| 20 | Without pressure reducing valve | no code |
| With pressure reducing valve | D3 7) | |
| Seal material (observe compatibility of seals with hydraulic fluid used, see "Technical data") | ||
| 21 | NBR seals | no code |
| FKM seals | V | |
| 22 | Further details in the plain text | * |
| R900738780 | H-4WH10C4X/S2 |
| R900521539 | H-4WH10D4X//V |
| R901077671 | H-4WH10E4X//ZV |
| R901232464 | H-4WH10E4X/S2 |
| R900575340 | H-4WH10G4X//V |
| R901077679 | H-4WH10G4X//ZV |
| R900534847 | H-4WH10H4X/ |
| R901077670 | H-4WH10H4X//ZV |
| R900599089 | H-4WH10HC4X//V |
| R900941397 | H-4WH10HD4X/ |
| R901077677 | H-4WH10J4X//ZV |
| R900566847 | H-4WH10M4X/ |
| R901220320 | H-4WH10R4X//V |
| R901152932 | H-4WH10R4X//ZV |
| R900907246 | H-4WH10T4X/ |
| R901037628 | H-4WH10T4X//V |
| R901425598 | H-4WH10W4X//ZV |
| R900539589 | H-4WH10Y4X//V |
| R901077680 | H-4WH10Y4X//ZV |
| R901096134 | H-4WH10Z4X//V |
| R900246899 | H-4WH10C4X/ |
| R900528376 | H-4WH10D4X/ |
| R900549770 | H-4WH10E49-4X//V |
| R900512094 | H-4WH10E4X/ |
| R901578704 | H-4WH10F4X/ |
| R900534845 | H-4WH10G4X/ |
| R900534846 | H-4WH10J4X/ |
| R901607433 | H-4WH10J4X//10 |
| R901601335 | H-4WH10J4X= |
| R901351939 | H-4WH10K4X/ |
| R901578705 | H-4WH10L4X/ |
| R901578670 | H-4WH10Q4X/ |
| R901125325 | H-4WH10R4X/ |
| R900508622 | H-4WH10U4X/ |
| R900513847 | H-4WH10Y4X/ |
| R900568415 | 4WH10C4X/S |
| R901338201 | 4WH10C4X/S |
| R901133566 | 4WH10C4X/S2 |
| R900564718 | 4WH10C4X/S2/V |
| R900581012 | 4WH10D30-4X/ |
| R900427851 | 4WH10D4X//V |
| R900592347 | 4WH10D4X/S |

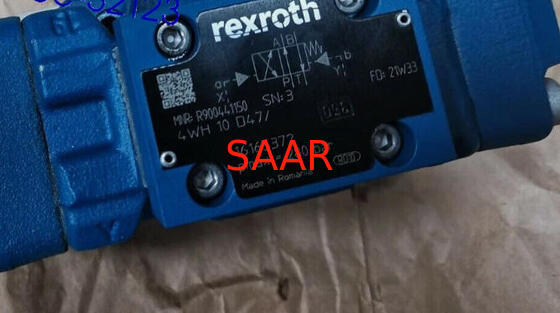

| R900471150 | 4WH10D4X/S2 |
| R900910498 | 4WH10E4X//10 |
| R900246400 | 4WH10E4X//V |
| R900248282 | 4WH10E4X/ET/B10V |
| R901402807 | 4WH10E4X/J |
| R900534006 | 4WH10E4X/S2 |
| R900518247 | 4WH10F4X/ |
| R900582265 | 4WH10G4X/S2 |
| R900474423 | 4WH10H4X/ |
| R900567688 | 4WH10HC4X/ |
| R901193461 | 4WH10HC4X//10 |
| R900428182 | 4WH10HD4X/ |
| R900744309 | 4WH10HD4X//V |
| R900510249 | 4WH10HZ4X/ |
| R900249126 | 4WH10J2-4X/ |
| R900777126 | 4WH10J4X//10 |
| R900960590 | 4WH10J4X//V |
| R900510213 | 4WH10J4X/J |
| R900562494 | 4WH10J4X/S2 |
| R900582530 | 4WH10L4X/ |
| R900562602 | 4WH10M4X/ |
| R900538177 | 4WH10Q4X/ |
| R900529533 | 4WH10Q4X//10 |
| R900440768 | 4WH10R4X/ |
| R900529175 | 4WH10R4X/S2 |
| R900529242 | 4WH10T4X/ |
| R901127650 | 4WH10T4X/ |
| R900586615 | 4WH10T4X/S2 |
| R900736797 | 4WH10U4X/ |
| R900472695 | 4WH10V4X/ |
| R900462239 | 4WH10W4X/ |
| R900443486 | 4WH10Y4X/ |
| R900539355 | 4WH10Y4X//V |
| R900598835 | 4WH10Z4X/ |
| R900522199 | 4WH10Z4X//V |

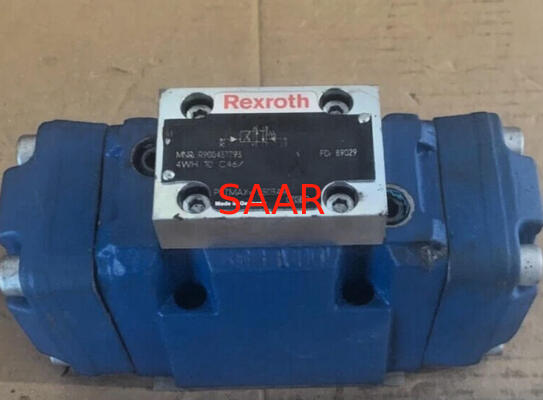

| R900437793 | 4WH10C4X/ |
| R900441150 | 4WH10D4X/ |
| R978876914 | 4WH10D4X//12 |
| R900473466 | 4WH10D4X/J |
| R901479336 | 4WH10D4X/J3 |
| R900444197 | 4WH10E4X/ |
| R901548162 | 4WH10E4X/J3 |
| R900441155 | 4WH10G4X/ |
| R900428004 | 4WH10J4X/ |
| R901501517 | 4WH10J4X= |
| R901438224 | 4WH10M4X/J |
| R901430030 | 4WH10P4X/ |
