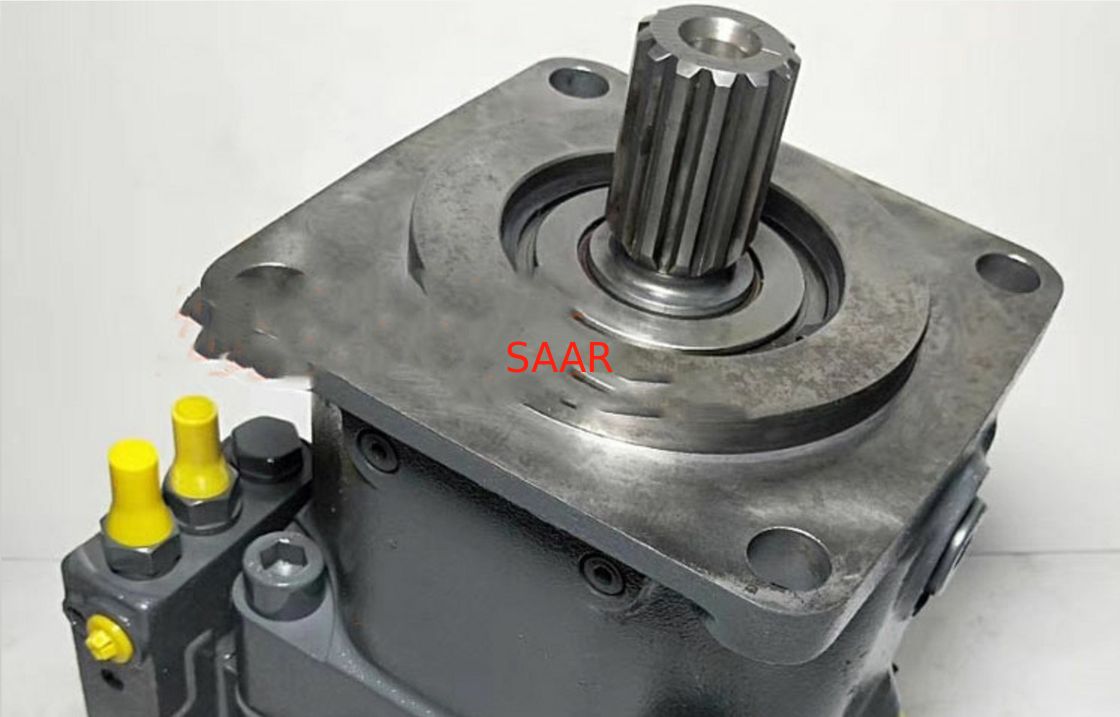

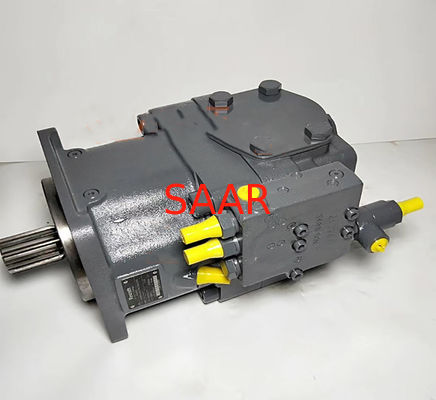

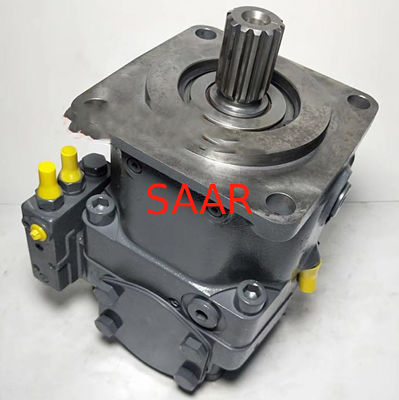

Name: R902198873 AA11VO260LRDS/11R-NSD62N00 Rexroth AA11VO260 Series Axial Piston Variable Pump
Brand: Saar HK Electronic Limited
SKU: R902198873 AA11VO260LRDS/11R-NSD62N00
Price: 1,075.00 USD
Availability: InStock

ホーム製品・レクスロス油圧ポンプ

R902198873 AA11VO260LRDS/11R-NSD62N00 Rexroth AA11VO260 Series Axial Piston Variable Pump

商品の詳細:

起源の場所:	ドイツ
ブランド名:	Rexroth
モデル番号:	R902198873 AA11VO260LRDS/11R-NSD62N00

お支払配送条件:

最小注文数量:	1
価格:	On Request
パッケージの詳細:	標準の木製の箱
受渡し時間:	7-10日
支払条件:	T/T、ウェスタンユニオン
供給の能力:	1000/月

連絡先

詳細製品概要

型番:

AA11VO260LRDS/11R-NSD62N00

MNR:

R902198873

ハイライト:

Rexroth AA11VO260 hydraulic pump

axial piston variable pump Rexroth

Rexroth hydraulic pump with warranty

Rexroth AA11VO Series Axial Piston Variable Pump

Features
Through drive for mounting of further pumps up to same nominal size
Optional with charge pump for the nominal sizes 130…260
Particularly high speeds are possible with impeller pump version (A11VLO)
Large variety of controls
Swashplate design

Table of values

Size				40	60	75	95	130	145	190	260	130	145	190	260
Version				Standard								With charge pump
Displacement geometric, per revolution		V_{g max}	cm³	42	58.5	74	93.5	130	145	193	260	130	145	193	260
Nominal pressure		p_nom	bar	350	350	350	350	350	350	350	350	350	350	350	350
Maximum pressure		p_max	bar	400	400	400	400	400	400	400	400	400	400	400	400
Maximum speed	at V_{g max}	n_nom	rpm	3000 ¹⁾	2700 ¹⁾	2550 ¹⁾	2350 ¹⁾	2100 ¹⁾	2200 ¹⁾	2100 ¹⁾	1800 ¹⁾	2500 ²⁾	2500 ²⁾	2500 ²⁾	2300 ²⁾
Flow	at V_{g max} and n_nom	q_{V nom}	l/min	126	158	189	220	273	319	405	468	325	363	483	598
Power	at q_{V nom} and p_nom	P	kW	74	92	110	128	159	186	236	273	190	211	281	349
Torque	at V_{g max} and p_nom	M	Nm	234	326	412	521	724	808	1075	1448	724	808	1075	1448
Weight (approx.)		m	kg	32	40	45	53	66	76	95	125	72	73	104	138

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth AA11VO260 Series Axial Piston Variable Pumps on Sale, Short lead time, Best price!!!

R902092180	AA11VO260DRG/11R-NSD62K02-ES
R902022818	AA11VO260DRG/11R-NSD62K02-S
R902235370	AA11VO260DRG/11R-NSD62K02-S
R902227615	AA11VO260EP2/11R-NXD07K04T-S
R902015345	AA11VO260EP2/11R-NXDXXK04E-S
R902063363	AA11VO260EP2/11R-NXDXXK04ET-S
R902097981	AA11VO260EP2/11R-NXDXXK04T-S
R986007411	AA11VO260EP2/11R-NXDXXK04T-S REMAN
R902030218	AA11VO260EP2/11R-NXDXXK04X-S
R902063365	AA11VO260EP2/11R-NXDXXK04XT-S
R902294937	AA11VO260EP2G4/11R-VSD62N00VP
R902294936	AA11VO260EP2G4/11R-VTD62K72VP
R902220360	AA11VO260EP2S/11R-MXD07K04T-S
R902040561	AA11VO260LRDS/11L-NSD62K07
R902092234	AA11VO260LRDS/11L-NSD62K07-E
R902198873	AA11VO260LRDS/11R-NSD62N00
R902044054	AA11VO260LRDS/11R-NTD62K02
R902044053	AA11VO260LRDS/11R-NTD62K07
R902092374	AA11VO260LRDS/11R-NTD62K07-ES
R902092653	AA11VO260LRDS/11R-NTD62K07-ES
R902092691	AA11VO260LRDS/11R-NTD62K07-ES
R902071871	AA11VO260LRDS/11R-NTD62K07-S
R902232747	AA11VO260LRDS/11R-NTD62K07-S
R902249558	AA11VO260LRDS/11R-NTD62K07-S
R902066226	AA11VO260LRDS/11R-NTD62N00
R902092350	AA11VO260LRDS/11R-NTD62N00
