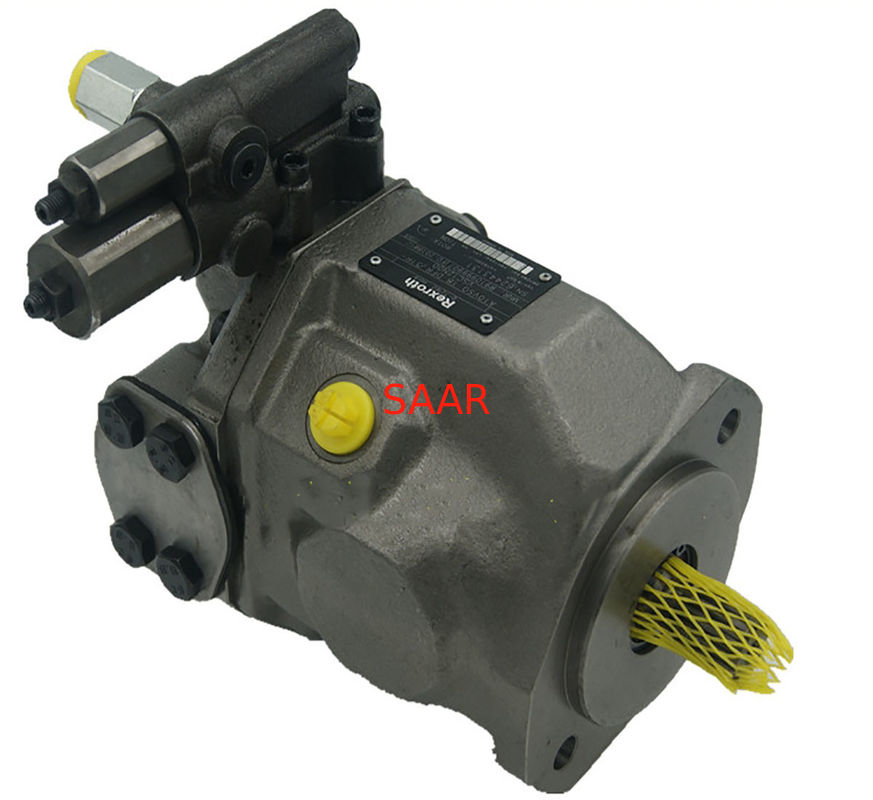

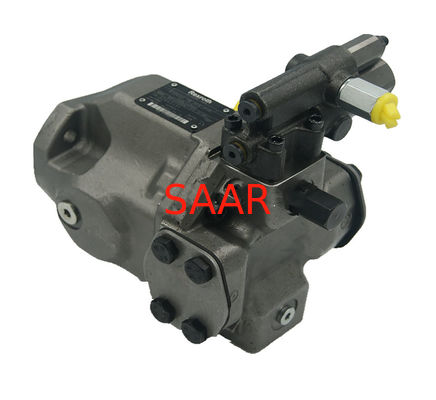

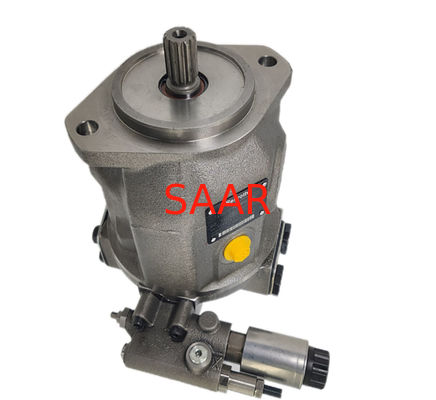

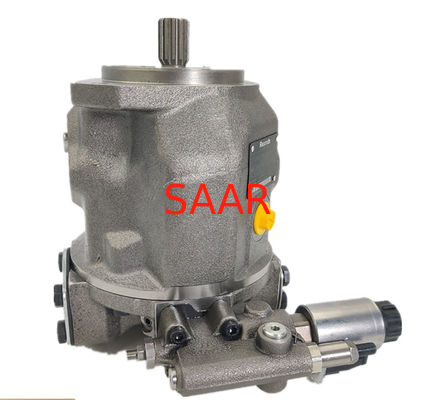

Name: R902593424 AA10VO18DR/31R-VSC12N00 AA10VO18 Series Axial Piston Variable Pump
Brand: Saar HK Electronic Limited
SKU: R902593424 AA10VO18DR/31R-VSC12N00
Price: 1,075.00 USD
Availability: InStock

ホーム製品・レクスロス油圧ポンプ

R902593424 AA10VO18DR/31R-VSC12N00 AA10VO18 Series Axial Piston Variable Pump

商品の詳細:

起源の場所:	ドイツ
ブランド名:	Rexroth
モデル番号:	R902593424 AA10VO18DR/31R-VSC12N00

お支払配送条件:

最小注文数量:	1
価格:	On request
パッケージの詳細:	カートン、木箱
受渡し時間:	7-10日
支払条件:	T/T、ウェスタンユニオン
供給の能力:	7-10daysの10PCS

連絡先

詳細製品概要

MNR:	R902593424	モデル:	AA10VO18DR/31R-VSC12N00

Rexroth Axial piston variable pump A10VO series 31

All-purpose medium pressure pump
Size 18 … 100
Nominal pressure 280 bar
Maximum pressure 350 bar
Open circuit

Features
Through drive for mounting of further pumps up to same nominal size
Low operating noise
Long service life
Controls with short response times
Excellent suction characteristics
2 drain ports
Swashplate design

Table of values

Size				18	28	45	71	88	100	45	71	100
Version				Standard						High speed
Displacement geometric, per revolution		V_g max	cm³	18	28	45	71	88	100	45	71	100
Nominal pressure		p_nom	bar	280	280	280	280	280	280	280	280	280
Maximum pressure		p_max	bar	350	350	350	350	350	350	350	350	350
Maximum speed ¹⁾	at V_g max	n_nom	rpm	3300	3000	2600	2200	2100	2000	3000	2550	2300
Flow	at V_g max and n_nom	q_V nom	l/min	59	84	117	156	185	200	135	178	230
Flow	at V_g maxand n = 1500 rpm	q_V 1500	l/min	27	42	68	107	132	150	68	107	150
Power	at q_{V nom} and p_nom	P	kW	30	39	55	73	86	93	63	83	107
Power	at q_{V 1500} and p_nom	P ₁₅₀₀	kW	12.6	20	32	50	62	70	32	50	70
Torque	at V_g max and p_nom	M	Nm	80	125	200	316	392	445	200	316	445
Weight (approx.)		m	kg	12.9	18	23.5	35.2	35.2	49.5	23.5	35.2	49.5

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth AA10VO18 Series Piston Pumps on Sale, Short lead time, Best price!!!

R902596837	AA10VO18DFR1/31R-VRC12N00-S5512
R902592709	AA10VO18DFR1/31R-VSC12K52
R902591282	AA10VO18DFR1/31R-VSC12N00
R902592710	AA10VO18DFR1/31R-VSC12N00
R902590026	AA10VO18DFR1/31R-VSC62N00
R902589838	AA10VO18DR/31L-VUC12N00
R902591224	AA10VO18DR/31R-VKC62K01-S1749
R902592299	AA10VO18DR/31R-VSC12N00
R902593424	AA10VO18DR/31R-VSC12N00
R902592583	AA10VO18DR/31R-VSC62N00
R902595361	AA10VO18DR/31R-VUC12K01
R902589835	AA10VO18DRG/31R-VUC12N00-SO13
R902492765	AA10VO18DRG/53L-VUC11N00
R902477105	AA10VO18DRG/53R-VPC12N00
R902556161	AA10VO18DRG/53R-VSC11N00
R902551833	AA10VO18DRG/53R-VUC12N00
